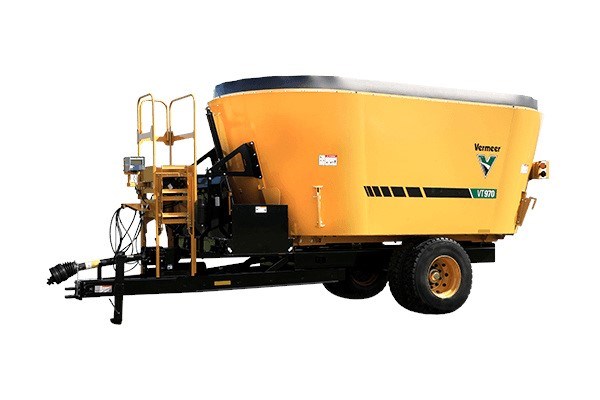

VT970 Twin-Screw Vertical Mixer
Overview:
- Nearly 1,000 ft3 (28.3 m3) in capacity plus an overlapping screw design that pulls feed from opposite chambers for a quick mixing process
- Performance-enhancing features help with efficient mixing
- Optimize ration costs and help reduce feed waste
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Efficient mixing and cleanout
Three points of contact with the tub floor, made up of two bi-pulse legs and the leading edge of the screw, help move material from the tub to the discharge conveyor for consistent distribution along a bunk line or tire.
Achieve a consistent, thorough mix with two overlapping screws and offset baffles on the tub wall. Instead of feedstuffs remaining in either the front or the back of the tub, the tub construction encourages the material to travel between the screws.
Convenient operation
Optimize rations and achieve defined targets when feeding in multiple pens with a 4-point scale. Plus, wireless connectivity makes load weights accessible from a smart device.
Optional bidirectional discharge makes feeding convenient. Feed either on the right or left side of the alley when traveling between pens or multiple buildings.
Operators can be confident their mixer will withstand various types of feedstuffs with minimized rust and maximized durability by adding optional stainless steel liners.
Looking for a large-capacity mixer but have terrain constraints? The VT970 twin-screw vertical mixer gives operators the option to configure a single axle with dual tires or a tandem-spring axle with four large super-single tires.
Built to last
Equipped with 1/4-in (6.4-mm) tub material and 3/4-in (19-mm) floor thickness, this mixer is built to withstand load after load.
Help machine life and get ready for long-lasting performance with two extra heavy-duty planetaries powering the screw.
Designed for strength, longevity and versatility, the durable screws are made from abrasion-resistant, heat-treated AR200 steel.
Operators can be confident their mixer will withstand various types of feedstuffs with minimized rust and maximized durability by adding optional stainless steel liners.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 127 in |
| Machine weight - standard | 20165 lbs |
| Maximum net load | 25000 lbs |
| Total length | 300 in |
| Transport width - 50-in folding conveyor extension | 119 in |
| Transport width - 119-in bi-directional conveyor | 119 in |
| Working width - 50-in folding conveyor extension | 136 in |
| Working width - 119-in bi-directional conveyor | 119 in |
| Tires (retread) | Standard 315/80R-22.5 dual; Optional 445/50R-22.5 tandem |
| TUB AND SCREWS | |
| Capacity | 970 cu ft |
| Number of screws | 2 |
| Number of knives per screw | 7 |
| Tub wall thickness | 1/4 in (6.4 mm) |
| Tub wall material | AR200 |
| Floor thickness | 3/4 in (19.1 mm) |
| Screw flighting thickness | 5/8 in (15.9 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Front conveyor |
| Discharge Direction | Left or right |
| Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
| Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
| Rear discharge door | Optional |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 180 hp (2-speed) (130 kW) |
| Recommended PTO horsepower | 200 hp |
| DRIVE SYSTEM | |
| Driveline | 1,000 rpm, CV |
| Two-speed gearbox | Optional |
| Torque Protection | Shear bolt |
| Screw rpm | 39 (1-speed); 39/26 (2-speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2810-BT |
| Number of weigh bars | 4 |
| Bluetooth connectivity | Standard |
| Remote Display | Optional |
