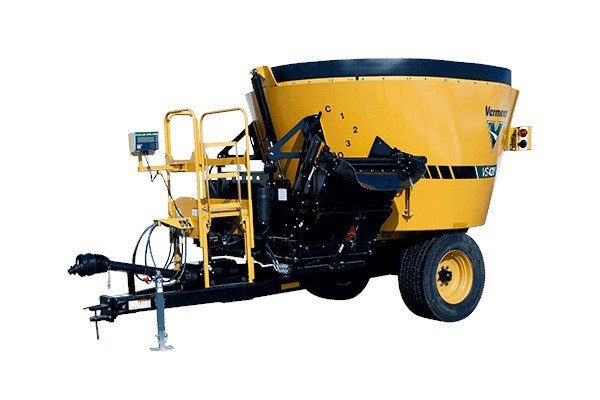

VS420 Single-Screw Vertical Mixer
Overview:
- Durable components contribute to long-lasting performance
- Process a 5-ft x 4-ft (1.5-m x 1.2-m) round bale and mix a wide variety of feedstuffs
- Optimize ration costs and help reduce feed waste
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Efficient mixing and cleanout
An optional 2-speed gearbox allows operators to tailor their mixing speed depending on the stage of the mixing and feeding cycle
Optimize mixing speed and achieve a thorough cleanout with optional high-screw rpm.
Achieve thorough cleanout at a quick rate. Two bi-pulse legs and the leading edge of the screw work together as three points of contact with the tub floor for ideal cleanout.
Convenient operation
Optimize rations and achieve more defined targets when feeding multiple pens with a 4-point scale that helps improve accuracy compared to a 3-point scale.
A standard folding ladder and viewing platform on the VS420 single-screw vertical mixer provides optimal visibility to the tub, compared to mixers without a platform.
A low loading height of 110 in (280 cm) on this machine allows for clearance in different barns and buildings, as well as loading with a tractor and most skid steers.
Built to last
Heavy-duty, abrasion-resistant AR200 steel makes the Vermeer VS420 single-screw vertical mixer ready for years of use, various feedstuffs and numerous loads.
Help extend machine life with a heavy-duty planetary.
Designed for strength, longevity and versatility, the durable screw features 5/8-in (16-mm) abrasion-resistant, heat-treated AR200 screw flighting and a full set of hard-surfaced knives.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 110 in |
| Machine weight - standard | 9560 lbs |
| Maximum net load | 14000 lbs |
| Total length | 211 in |
| Transport width - 50-in folding conveyor extension | 117 in |
| Working width - 50-in folding conveyor extension | 135 in |
| Tires (retread) | Standard 445/50R-22.5; Optional 445/50R-22.5 lug; Optional 255/70R-22.5 dual |
| TUB AND SCREWS | |
| Capacity | 420 cu ft |
| Number of screws | 1 |
| Number of knives per screw | 6 |
| Tub wall thickness | 1/4 in (6.4 mm) |
| Tub wall material | AR200 |
| Floor thickness | 3/4 in (19.1 mm) |
| Screw flighting thickness | 5/8 in (15.9 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Front conveyor |
| Discharge Direction | Left or right |
| Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
| Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 100 hp (70 kW) |
| Recommended PTO horsepower | 120 hp |
| DRIVE SYSTEM | |
| Driveline | Standard: 1,000 rpm, CV; Optional: 540 rpm, CV |
| Two-speed gearbox | Optional |
| Torque Protection | Shear bolt |
| Screw rpm | 39 (1-speed); 39/26 (2-speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2810-BT |
| Number of weigh bars | 4 |
| Bluetooth connectivity | Standard |
