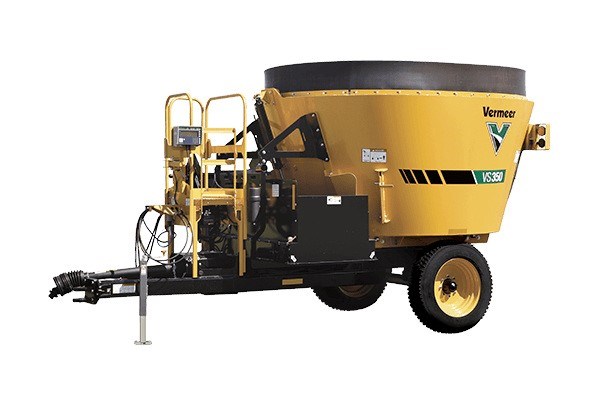

VS350 Single-Screw Vertical Mixer
Overview:
- Small but mighty, enhance your feeding routine
- Optimize ration costs and help reduce feed waste
- Create a consistent and thorough ration with a variety of feedstuffs
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Efficient mixing and cleanout
An optional 2-speed gearbox allows operators to tailor their mixing speed depending on the stage of the mixing and feeding cycle.
Optimize mixing speed and achieve a thorough cleanout with high-screw rpm.
Achieve thorough cleanout at a quick rate. Two bi-pulse legs and the leading edge of the screw work together as three points of contact with the tub floor for ideal cleanout.
Convenient operation
Optimize rations and achieve more defined targets when feeding multiple pens with a 4-point scale that helps improve accuracy compared to a 3-point scale.
A standard folding ladder and viewing platform on the VS350 single-screw vertical mixer provides optimal visibility to the tub, compared to mixers without a platform.
A low loading height of 106 in (270 cm) on this machine allows for clearance in different barns and buildings, as well as loading with a tractor and most skid steers.
Scales are equipped with wireless connectivity, so operators can view weight from their smart device.
Built to last
Equipped with 1/4-in (6.3-mm) tub material and 1/2-in (12.7-mm) floor thickness, this mixer is small, but mighty.
Help extend machine life with a heavy-duty planetary.
Designed for strength, longevity and versatility, the durable screw is made from abrasion-resistant, heat-treated AR200 steel.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 106 in |
| Machine weight - standard | 7550 lbs |
| Maximum net load | 12000 lbs |
| Total length | 202 in |
| Transport width - 50-in folding conveyor extension | 111 in |
| Working width - 50-in folding conveyor extension | 130 in |
| Tires (retread) | Standard 255/70R-22.5; Optional 14-17.5 skid steer |
| TUB AND SCREWS | |
| Capacity | 350 cu ft |
| Number of screws | 1 |
| Number of knives per screw | 5 |
| Tub wall thickness | 1/4 in (6.4 mm) |
| Tub wall material | Regular structural steel |
| Floor thickness | 1/2 in (12.7 mm) |
| Screw flighting thickness | 1/2 in (12.7 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Front conveyor |
| Discharge Direction | Left or right |
| Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
| Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 90 hp (70 kW) |
| Recommended PTO horsepower | 100 hp |
| DRIVE SYSTEM | |
| Driveline | Standard: 1,000 rpm, CV; Optional: 540 rpm, CV |
| Two-speed gearbox | Optional |
| Torque Protection | Shear bolt |
| Screw rpm | 1,000 rpm configuration: 48 (1-speed), 48/32 (2-speed); 540 rpm configuration: 40 (1-speed); 40/27 (2-speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2810-BT |
| Number of weigh bars | 4 |
| Bluetooth connectivity | Standard |
