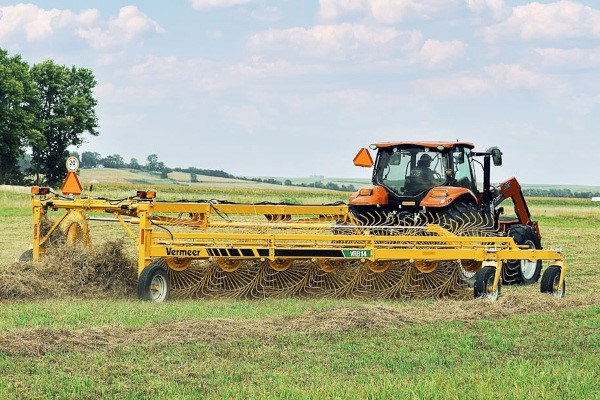

VRB12 High-Capacity Bifold Wheel Rake
Overview:
- Combine durability and versatility into a cost-effective package
- Designed for optimal ground clearance
- Maximized performance in heavy crops
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Maximized efficiency
Go from raking to transporting quickly as the rake opens and closes hydraulically from the cab.
Experience a smooth, level ride and contour the ground in varying conditions with optional tandem wheels.
Avoid obstacles and optimize crop flow into the windrow with a high-capacity frame with optimal ground clearance.
Heavy-duty components
Maximize machine life. A rugged, reinforced frame and heavy-duty components make this a highly durable rake for its class.
Maximize your productivity with optimal clearing action and crop flow with standard 60-in (152-cm) rake wheels.
Simple maintenance and adjustments
Make quick adjustments with toolless ground pressure adjustment for consistent raking in varying ground conditions by adjusting a pin location on each toolbar.
Windrow width can be toollessly adjusted with a ratchet lever or optional hydraulic windrow width adjustment circuit.
Enable single-side raking in seconds without any tools by selecting either left- or right-side raking configurations.
Help protect your hay quality
Achieve an even dry-down for center swath hay with an optional center splitter. The splitter lifts and locks hydraulically for transport and can be raised and lowered when turning tight corners.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Raking width maximum | 25 ft |
| Windrow width minimum | 36 in |
| Windrow width maximum | 72 in |
| Transport Width | 8.3 ft |
| Transport Length | 24.8 ft |
| Transport Height | 6.4 ft |
| Total Weight | 3820 lbs |
| Tongue Weight | 1367 lbs |
| Transport tire size | 205/75-R15 |
| Flotation | Steep spring on individual rake wheel |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 12 |
| Rake wheel diameter | 60 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| Single-side raking | Optional |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 30 hp |
| Hydraulic Type | 2 double-acting |
| Hydraulic Pressure | 1800 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Highway Lights | Standard |
| Safety Chain | Optional |
| Center splitter | Optional |
