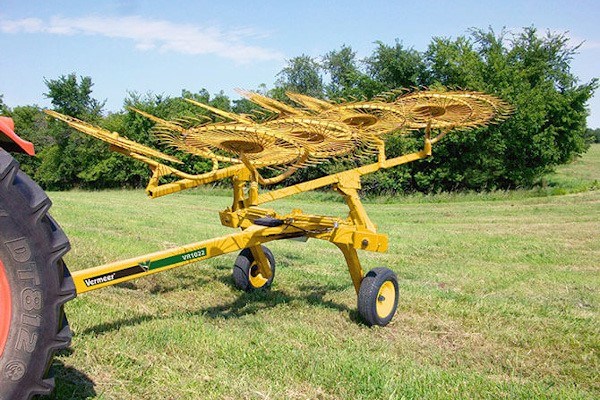

VR1022 Carted Wheel Rake
Overview:
- Rake field after field with ease
- High-performance and reliability
- Simple features make operation a breeze
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Efficient raking
Effortlessly form windrows with a high-clearance frame designed to accommodate heavy hay crops without obstruction.
Maximize efficiency by raking up to 22.6 ft (6.9 m) in each pass, thanks to eight wheels on each wing.
Easily adjust raking width and angle without tools, allowing you to quickly increase or decrease windrow size for optimal efficiency.
Simple maintenance and adjustments
Create clean, defined windrows and minimize wear on rake tines with a rubber torsion toolbar suspension that lets operators adjust rake wheel down pressure to match crop volume and conditions.
Help keep your equipment running smoothly with greaseable tapered roller bearings on both the rake and transport wheels for reduced friction and longer lifespan.
Enable single-side raking in seconds without any tools by selecting either left- or right-side raking configurations.
Protect your hay quality
Consistent dry down — even in the center swath — can be achieved with the optional center splitter’s dual-angled, ground driven rake wheels. This feature splits the crop to allow for more air flow in the windrow.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 19 ft |
| Raking width maximum | 22.6 ft |
| Windrow width minimum | 19 in |
| Windrow width maximum | 82 in |
| Transport Width | 10 ft |
| Transport Length | 20.2 ft |
| Transport Height | 9.4 ft |
| Total Weight | 1520 lbs |
| Tongue Weight | 300 lbs |
| Transport tire size | ST205/75D15 |
| Flotation | Rubber torsion on toolbar |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 10 |
| Rake wheel diameter | 55 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| Single-side raking | Standard left- or right-side capable |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 30 hp |
| Hydraulic Type | 1 double-acting |
| Hydraulic Pressure | 1500 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Safety Chain | Optional |
| Center splitter | Optional |
