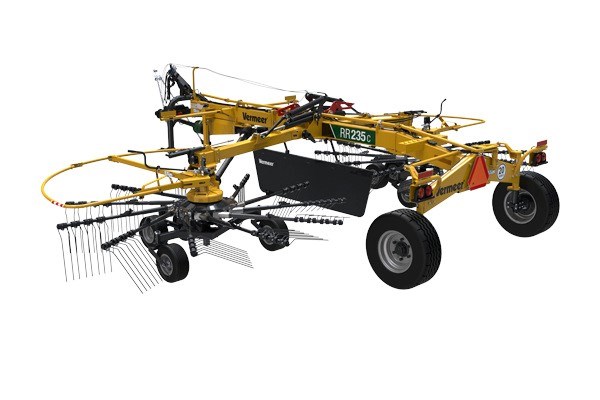

RR235C Rotary Rake
Overview:
Built to withstand acre after acre
Built to withstand tough field conditions and ensure reliable and efficient operation, the RR235c is equipped with robust 420 mm (16.5 in) diameter cam tracks.
Follow the ground smoothly and evenly with three unique, patented walking tandems under each rotor.
Enhance maneuverability and minimize field impact with a steerable axle ensuring the machine follows the tractor seamlessly during turns.
A very intentional design with heavy-duty components helps you be confident that your rake will last for the long-haul.
Simple adjustments, hassle-free maintenance
Convenient toolless adjustments on cam and rake height allow for precise control during operation.
Long service life and simple maintenance come from a modular rotor with individually replaceable parts.
Save time and money by preventing damage to your PTO shaft with the partial lift feature that allows you to quickly lift rotors during headland turns – keeping you in the field instead of the shop.
Clean, high-quality forage
Achieve efficient raking and clean, even windrows with a modular rotor.
Tailor your rake to crop volume and field conditions with large cam tracks and bearings with up to 30 degrees of adjustment.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
| Dimensions and Weights | |
| Raking width minimum | 21.5 ft |
| Raking width maximum | 23.4 ft |
| Windrow width minimum | 51 in |
| Windrow width maximum | 73 in |
| Transport Width | 9.8 ft |
| Transport Length | 18.1 ft |
| Transport Height | 11.4 ft |
| Total Weight | 3968 lbs |
| Tongue/hitch weight | 1706 lbs |
| Transport tire size | 380/55-17 |
| Rotor tire size | 16x6.50-8 |
| Flotation | 3x walking tandem axle under each rotor |
| Drive | PTO |
| Raking components | |
| Tooth diameter | .3 in |
| Rotor diameter | 10.3 ft |
| Number of tine arms | 2x11 (22) |
| Number of double tines per arm | 4 |
| Single-side raking | Optional electric/hydraulic separate rotor lift |
| Windrow width adjustment | Manual, Hyd. optional |
| Windrow position | Center |
| Rotor lift | Hydraulic |
| Tractor Requirements | |
| PTO horsepower minimum | 55 hp |
| Hydraulic Type | One single acting control valve with float function to operate the rotor raise/lower function. One double acting control valve without float to operate the rake arm extend/retract function. (optional equipment)" |
| Hydraulic Pressure | 1885 psi |
| Hydraulic flow rate | 6 gpm |
| PTO speed | 540 rpm |
| Recommended PTO speed | 400 rpm - 500 rpm |
| Hitch | Cat. III N (narrow) 2-point hitch |
| Minimum Tractor Weight | 2650 lbs |
| Tractor safety requirements | A Rollover Protective Structure (ROPS) and seat belt Upright exhaust system |
| Electrical System | 12 Vdc battery connection for optional electric rotor raise/lower selector |
| Lighting System | ASABE S279 7-pin connection for highway lights |
| Features | |
| Highway Lights | Standard |
Specifications
- Reliability and longevity to withstand acre after acre
- Simple adjustments and hassle-free maintenance
- Achieve clean, high-quality forage
