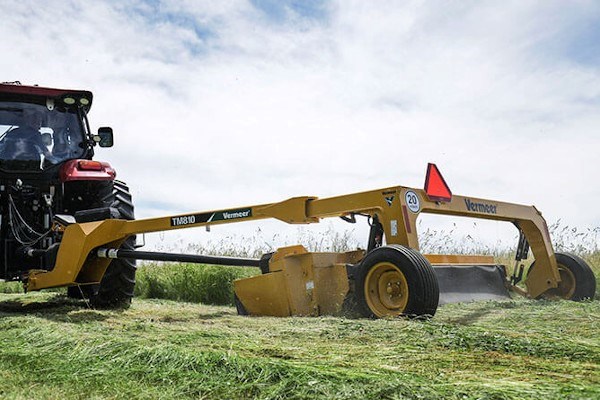

TM810 Trailed Mower
Overview:
- Offers simplicity from the word GO
- Low horsepower requirements
- Narrow transport widths
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Clean, close cutting
Achieve clean cuts and high performance with the tapered, low-profile cutter bar that minimizes streaking. Each unit comes prepackaged with gears, bearings and lubricant for durability, plus 3-year coverage.
Convenient operation
Hitch up easily. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field.
Simple maintenance
Replace blades in seconds using the exclusive Quick-Clip® blade retention system.
Built for longevity
Help protect your mower and your field with a patented rubber torsion design. Absorb shock loads and keep the cutter bar on the ground unless it needs to float over field obstacles.
Maneuver around obstacles with ease, thanks to the hydraulic swing cylinder.
Just the right size
Achieve a 9.2 ft (2.8 m) cutting width while maintaining a narrow transport width.
With horsepower requirements of just 55 hp (41 kW), this mower is just right for your operation.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Transport Height | 46 in |
| Transport width - standard | 10.8 ft |
| Transport Length | 15.3 ft |
| Cutting Width | 10.5 ft |
| Working Height | 46 in |
| Working Width | 14.9 ft |
| Working Length | 14.3 ft |
| Total Weight | 2300 lbs |
| Tongue Weight | 600 lbs |
| Suspension | Rubber torsion |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 27x9.5-15 |
| TRACTOR REQUIREMENTS | |
| Tongue/hitch | Drawbar |
| Drive PTO | 540 rpm |
| PTO horsepower recommended | 60 hp |
| Hydraulic Type | 2 double-acting (1 double-acting with optional kit) |
| Hydraulic Pressure | 1250 psi |
| Hydraulic flow rate | 6 gpm |
| CUTTER BAR | |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3 in (3.2 cm - 7.6 cm) |
| Number of Discs | 8 |
| Disc Diameter | 19.7 in |
| Disc Speed | 2797 rpm |
| Number of Blades | 16 |
| Angle Adjustment | Manual turnbuckle |
| Quick Clip® blade retention system | Standard |
| Curtain material | 1 ply 1/8 in rubber |
| 3-year limited cutter bar warranty | Standard |
| FEATURES | |
| Optional swath formation | Optional swathboard |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
