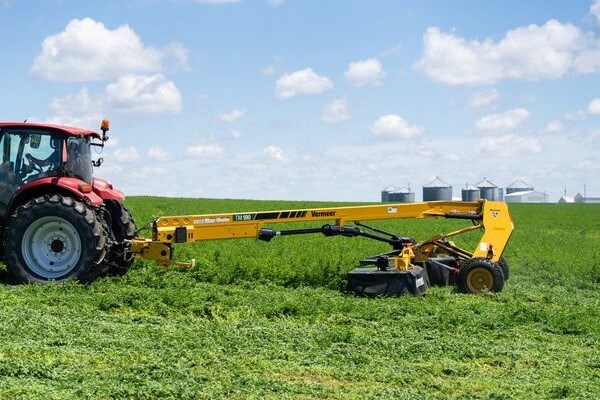

TM180 Trailed Mower
Overview:
- Consistent cut quality with an improved suspension system
- Wide cutting width to cover more acres per hour
- Simple suspension adjustment to match field conditions
- Q3 cutter bar provides durability and straightforward maintenance
- Narrow transport width for travel between fields
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Clean, consistent cut
Get a cleaner cut across every pass. Independent cutter bars help the mower follow field contours for more consistent cutting performance.
Built for durability where it matters most. A rugged cutter bar and thick 5-mm (0.2 in) blades help maintain performance in tough conditions while extending component life.
More acres per pass
Move easily between fields. Designed to balance wide cutting capacity with manageable transport for better roadability.
Cover more acres in less time. Wide cutting widths help maximize productivity and reduce the number of passes needed in the field.
Set it and forget it
Hook up and get to work faster. A simple, two-point quick hitch design helps reduce setup time and makes switching implements easier.
Maintain consistent flotation across changing field conditions with a suspension system that helps the cutter bar glide over the ground. If conditions change, operators can easily fine-tune flotation in the field.
Maintenance made simple
Quick check oil access makes routine maintenance simple, helping you keep each cutter unit running smoothly with less effort.
Built to protect what matters. The Quick‑Change™ shear ring helps shield key internal components by absorbing impact from obstacles, minimizing damage and simplifying repairs.
Change blades in seconds and get back to mowing. The Quick‑Clip® blade retention system makes it fast and easy to replace or reverse blades, helping maintain a clean cut while reducing downtime.
Specifications
| Dimensions and Weights - Approximate | |
| Transport Height | 76 in |
| Transport width - standard | 9.1 ft |
| Transport width with flotation tires | 9.8 ft |
| Cutting Width | 17.7 ft |
| Transport Length | 25.3 ft |
| Working Height | 76 in |
| Working Width | 24.9 ft |
| Working Length | 19.8 ft |
| Total Weight | 7500 lbs |
| Tongue Weight | 2000 lbs |
| Suspension | Hydraulic |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 480/45x17 flotation tire |
| Tractor Requirements | |
| Hitch | 2-point quick hitch with swivel gearbox, category II or III N |
| Drive PTO | 540 rpm or 1,000 rpm |
| Minimum Horsepower Required | 95 hp |
| Hydraulic requirements | 2 double-acting |
| Flow Rate | 6 gpm |
| Hydraulic Pressure | 1850 psi |
| Cutterbar | |
| Cutter bar type | Q3® cutter bar |
| Cut height | 1 in - 3 in (2.5 cm - 7.6 cm) |
| Number of Discs | 12 |
| Disc Diameter | 23 in |
| Disc Speed | 2,690 rpm |
| Number of Knives | 24 |
| Angle Adjustment | Hydraulic pitch control |
| Quick Clip® blade retention system | Standard |
| Quick-Change™ shear ring | Standard |
| Curtain material | 1,400 gm/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| Standard Features | |
| Optional swath formation | Optional swathwheel |
| Skid Shoes | Standard modular independent skid shoes; optional topping wear skids |
| Highway Lights | Standard |
