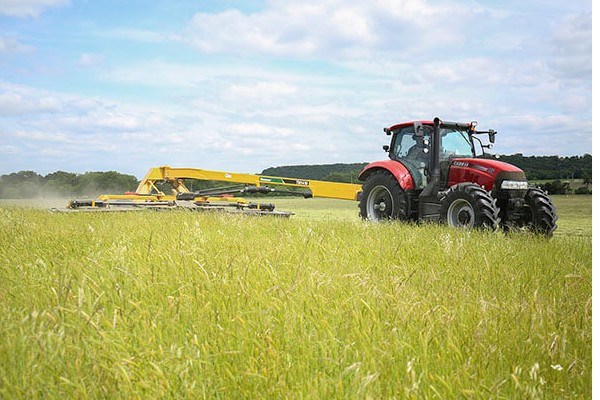

TM1410 Trailed Mower
Overview:
- Cut more hay in less time
- Wide cutting width, narrow transport width
- Convenient features take the stress out of operating, transporting and maintaining a large trailed mower
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Maximized productivity
Maximize productivity with the Q3® cutter bar. Key features such as the Quick-Clip® blade retention system and Quick-Change™ shear ring are designed for productivity, functionality and to allow for quick and easy replacement in the field.
Convenient operation
Float over fields and contoured terrain with a nitrogen-charged accumulator suspension system that adjusts for varying field and crop conditions.
Two independent cutter bar units work with the suspension system to allow the mower to flex in uneven ground contour.
Built with the operator in mind
Want an even smoother ride? Optional 480/45 x 17 large float tires are available for the TM1210 trailed mowers.
Get more protection from unseen obstacles with the wide skid shoes and suspension system that help protect the cutter bars and the friction clutch, which protects the drive system.
Simple maintenance
Gain easy access to each individual cutter unit.
Replace blades in seconds using the exclusive Quick-Clip blade retention system.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Transport Height | 76 in |
| Transport width - standard | 9.1 ft |
| Transport width with flotation tires | 9.8 ft |
| Transport Length | 25.2 ft |
| Cutting Width | 20.8 ft |
| Working Height | 76 in |
| Working Width | 27.1 ft |
| Working Length | 19.8 ft |
| Total Weight | 6660 lbs |
| Tongue Weight | 1940 lbs |
| Suspension | Hydraulic |
| Torque Protection | Driveline: friction disc clutch |
| Tires | Standard 31x13.5-15; Optional 480/45x17 flotation tire |
| TRACTOR REQUIREMENTS | |
| Tongue/hitch | 2-point quick hitch with swivel gearbox, category II or III N |
| Drive PTO | 1000 rpm |
| PTO horsepower recommended | 105 hp |
| Hydraulic Type | 3 double-acting (2 double-acting with optional kit) |
| Hydraulic Pressure | 1850 psi |
| Hydraulic flow rate | 6 gpm |
| CUTTER BAR | |
| Cutter bar type | Q3® |
| Cut height | 1 in - 3 in (2.5 cm - 7.6 cm) |
| Number of Discs | 14 |
| Disc Diameter | 23 in |
| Disc Speed | 2690 rpm |
| Number of Blades | 28 |
| Angle Adjustment | Hydraulic pitch control |
| Quick Clip® blade retention system | Standard |
| Quick-Change™ shear ring | Standard |
| Curtain material | 1400 g/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| FEATURES | |
| Optional swath formation | Optional swathwheel |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
| Highway Lights | Standard |
