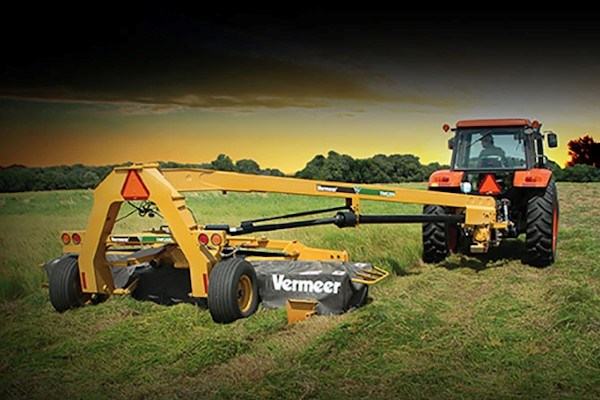

TM1200 Trailed Mower
Overview:
- Wide cutting width, narrow transport width
- Complete, consistent cutting action
- Minimized, convenient maintenance
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Maximized productivity
Cutter bars are staggered and overlap for complete cutting action down the middle.
Help reduce labor and fuel by using one wide swath mower to cut more acres than multiple 3-point mowers.
Convenient operation
Help protect your cutter bar and your field. The suspension system complements the independent cutter bars, allowing each to contour the ground and operate at different levels.
Float over fields and contoured terrain with a nitrogen-charged accumulator flotation system that adjusts for varying field and crop conditions.
Built with the operator in mind
Get more protection from unseen obstacles with the wide skid shoes and suspension system that help protect the cutter bars and the friction clutch, which protects the drive system.
Simple maintenance
Minimize maintenance with 12 self-contained discs, each with their own set of gears, bearings and lubricants. Gears stay in the grease — even when mowing at extreme angles.
Gain easy access to the cutter bars with flip-up curtains.
Replace blades in seconds using the exclusive Quick-Clip® blade retention system.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Transport Height | 78 in |
| Transport width - standard | 8.5 ft |
| Transport Length | 22 ft |
| Cutting Width | 15.5 ft |
| Working Height | 78 in |
| Working Width | 22 ft |
| Working Length | 18 ft |
| Total Weight | 5900 lbs |
| Tongue Weight | 1580 lbs |
| Suspension | Hydraulic |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 31x13.5-15 |
| TRACTOR REQUIREMENTS | |
| Tongue/hitch | 2-point with swivel gearbox, category II or III N |
| Drive PTO | 540 or 1000 rpm |
| PTO horsepower recommended | 85 hp |
| Hydraulic Type | 2 double-acting |
| Hydraulic Pressure | 1500psi |
| Hydraulic flow rate | 6 gpm |
| CUTTER BAR | |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3 in (3.2 cm - 7.6 cm) |
| Number of Discs | 12 |
| Disc Diameter | 19.7 in |
| Disc Speed | 2950 rpm |
| Number of Blades | 24 |
| Angle Adjustment | Hydraulic pitch control |
| Quick Clip® blade retention system | Standard |
| Curtain material | 1400 g/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| FEATURES | |
| Optional swath formation | Optional swathwheel |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
| Highway Lights | Standard |
