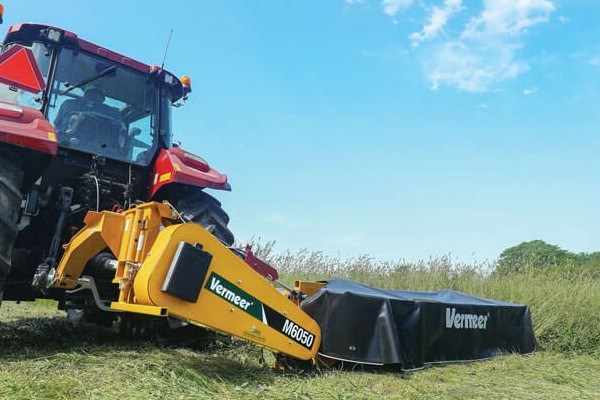

M6050 Disc Mower
Overview:
- Built for high performance, longevity and convenience
- Hookup is a one-person job
- High cutting performance and maximized machine life
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Clean, close cutting
Achieve clean cuts and high performance with the tapered, low-profile cutter bar that minimizes streaking. Each unit comes prepackaged with gears, bearings and lubricant for durability, plus 3-year coverage.
Convenient operation
Simplify your setup with the Quick Hitch hookup, allowing one person to easily connect the disc mower to the tractor — just back up and go.
Simple maintenance
Experience convenient maintenance with the Quick-Clip® blade retention system, allowing you to change and turn blades in seconds — no specialty tools needed.
Specifications
| Model | M6050 Disc Mower |
| DIMENSIONS AND WEIGHTS | |
| Transport Width - standard | 7.8 ft |
| Transport length | 6.5 ft |
| Cutting Width | 7.8 ft |
| Working Width | 7.8 ft |
| Working Length | 6.5 ft |
| Total Weight | 1215 lbs |
| Torque Protection | Driveline: V-belt |
| Drawbar Horsepower | 60 hp (44.7 kw) |
| TRACTOR REQUIREMENTS | |
| Tongue/hitch | 3-point quick hitch, category II or III N |
| Drive PTO | 540 rpm |
| PTO horsepower recommended | 60 hp |
| Hydraulic Type | 1 auxiliary remote, single -acting |
| Hydraulic Pressure | 1700 psi |
| Hydraulic flow rate | 6 gpm |
| CUTTER BAR | |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3.9 in (3.2 cm - 9.9 cm) |
| Number of Discs | 6 |
| Disc Diameter | 19.7 in |
| Disc Speed | 2850 rpm |
| Number of blades | 12 |
| Angle Adjustment | Top-link on 3-point |
| Quick Clip® blade retention system | Standard |
| Curtain Material | 1400 g/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| FEATURES | |
| Optional swath formation | Optional crop divider; Optional crop divider and swath wheel combination |
| Skid Shoes | Optional topping skid shoes; Optional wear skids |
