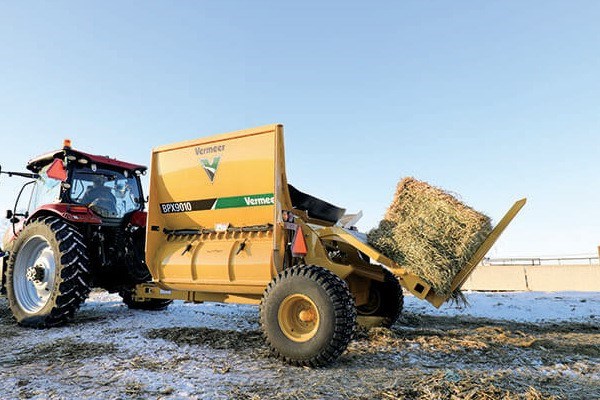

BPX9010
Overview:
- Simplicity, durability and versatility
- An all-around processor ready to perform a variety of applications
- Waste less, process more
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Simple maintenance
No one likes spending their time cleaning netwrap and twine off the rotor. That’s why the rotor cleaner attachment is designed to reduce excessive net and twine on the rotor and to minimize the amount that ends up in the feed.
Convenient operation
Load bales conveniently and reduce machine stress with the vertical bale lift system. The robust T-style tongue frame, free of welds at high-stress points, adds durability by being bolted high on the tub.
Consistent spread
Consistent feeding comes standard, thanks to an offset rotor that pulls the material through the machine and helps prevent uncontrolled fall-through when slowing down.
Gain control during operation with the toolless cut control bar design, featuring ten settings to customize your processing speed and material size.
Versatility for different operations
Spread bedding with consistency at ranges of up to 50 ft (15.2 m).
Process both round and large square bales evenly and consistently with the optional powered sidewall kit and the optional straight fork kit.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Length | 15.8 ft |
| Height | 8.5 ft |
| Transport Width | 8.2 ft |
| Working Width | 11.2 ft |
| Weight | 5240 lbs |
| Drawbar Weight | 1480 lbs |
| Axle adjustment | 12 in (30.5 cm) each axle |
| Tires | Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 85 hp (63 kW) |
| PTO horsepower recommended | 100 hp |
| PTO horsepower maximum | 210 hp |
| PTO speed | 1000 rpm |
| Hydraulic Type | 3 double-acting (2 double-acting with optional kit) |
| Hydraulics Pressure | 2000 psi |
| Hydraulic flow rate | 8 gpm |
| TUB | |
| Bale rotation | 3 roller chains with bolt-on cross slat |
| Bale size capacity | (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m) |
| Bale weight capacity | 2500 lbs |
| PROCESSING SYSTEM | |
| Cut Control Bar Adjustment | Hand lever with 5 settings, plus an additional high/low setting |
| Cut Control Bar Quantity | 7 |
| Flail description | 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring |
| Flail Drum Diameter | 26.8 in |
| Flail Drum Length | 78 in |
| Flail Drum Speed | 1000 rpm |
| Flail Drum Quantity | 30 |
| DISCHARGE SYSTEM | |
| Discharge Direction | Right hand |
| Horizontal spread distance | Up to 50 ft (15.2 m) |
| FEATURES | |
| Safety Chain | Optional |
| Torque Protection - Driveline | Shear bolt |
| Scale kit | Optional |
| Material containment kit | Optional |
| Powered sidewall | Optional |
| Square bale kit | Optional |
| Front discharge curtain | Optional |
