SB5226W1224
Overview:

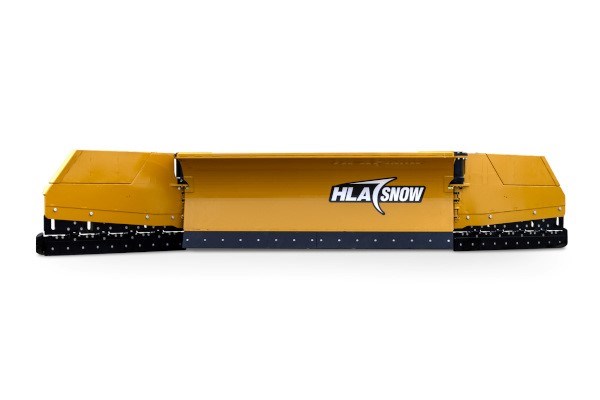

The 5226W Series SnowWing is sized for ag tractors and wheel loaders from 25,000 to 40,000 lbs. operating weight. Featuring 72" long adjustable wings with spring trip protection, powered by patented high-torque rotary actuators, it combines functionality of both angle blades and box pushers, to provide unparalleled efficiency and productivity for commercial contractors.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 2 Year Warranty
Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty. - 6' Wings
The six foot wing models in the SnowWing lineup reach even further, requiring fewer passes to finish each job. - Spring Trip Wing
The six foot wings come standard with a spring trip edge. - Removeable Upper Wing Tip
Each six foot wing model comes standard with removeable upper wing tips. When removed, it forms a contour wing, designed to go under the fifth wheel pin of trailers, clearing those hard to reach places for an even cleaner finish. - 180° Rotation
Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation. - Curb Runner
The Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges. - Spill Guard
Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades. - Carbide Cutting Edges
Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
NOTE: Colour added to image to highlight carbide. - Floating Blade Hinge
This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the attachment carrier forward. - Snowblade Marker
Add this to your blade for better visibility and blade position awareness. - Foot Switch
The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows.
Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order. - SB5QDM Quick Attach Snow Blade Mount
Call dealer for more details. - 35° Angle with Crossover Relief Valve Protection
Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property. - Floating End Plate Edge
Floating endplate edges follow surface contour for confident snow clearing. - Lateral Float
Allows blade to follow ground contours for better clearing performance. - Nitrate Rods on Angle Cylinders
Nitrate rods on angle cylinders. - Replaceable, Reversible Cutting Edge
Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Note: Replace endcaps along with cutting edges to prevent streaming.
Wing edges are not reversible.
(non Edge Flex only) - Rotary Actuators
These rugged units come from the construction industry and deliver up to 103,000 in-lb. of torque at 3000 PSI to hold the wings in place.
Specifications
| Part # | SB5226W1224 |
| Cutting Edge | Standard |
| Approx. Weight (LBS.) | 5,345 |
| Clearing Width Closed (in.) | 144 |
| Clearing Width Open (in.) | 288 |
| Overall Road Width (Angled) (in.) | 137 |
| Snow Clearing Width (Angled) (in.) | 240 |
| Wing Width (Each) | 72" |
| Mouldboard Height | 42" |
| Max Operating Weight (lbs.) | 40,000 |
