Light Construction
Skid Loader (Four Rubber Tires)
The Next Revolution
Vertical-Lift Skid Loaders
Providing more reach at full lift height is optimal for applications that require loading and stacking at high heights. By keeping the load closer to the machine, lift capacities are increased over radial-lift models.
R Series Skid Loaders
The versatile Gehl Radial-Lift Skid Loaders are designed to meet the demanding needs of contractors, municipalities, landscapers, mining, dairies and agricultural operations.
These skid loaders feature an all-new operator station with an integrated digital display, new load arm design with increased visibility, Tier IV engines and several serviceability enhancements.
×
![]()
RT105 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 1,050 lbs. (476)
Power (kW): 35 hp (26)
Lift Height (mm): 109" (2769
RT135 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 1,350 lbs. (612)
Net Power (kW): 46.6 hp (34.3)
Lift Height (mm): 110" (2794)
RT165 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 1,650 lbs. (748)
Net Power (kW): 68.4 hp (51)
Lift Height (mm): 119.6" (3038)

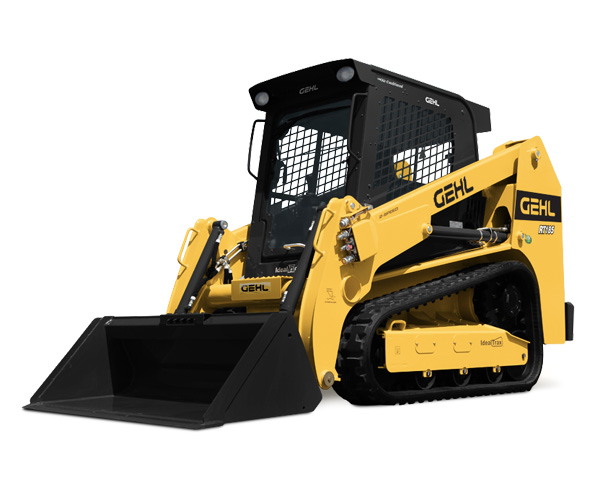

RT185 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 1,850 lbs. (839)
Gross Power (kW): 69.9 hp (52.1)
Lift Height (mm): 128" (3251)
RT215 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 2,150 lbs. (975)
Net Power (kW): 72 hp (54)
Lift Height (mm): 128" (3251)

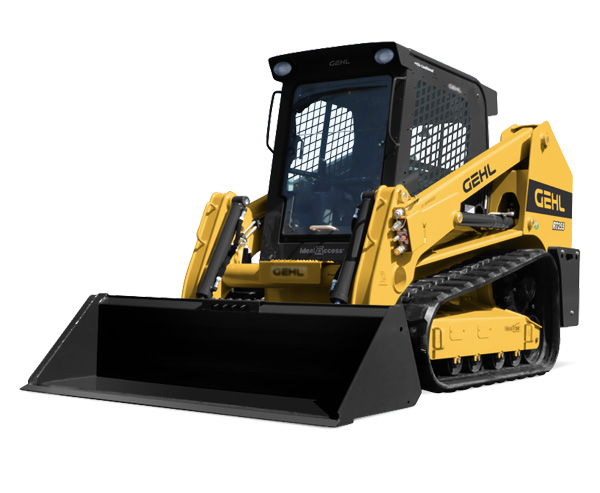

RT255 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 2,550 lbs. (1157)
Gross Power (kW): 74.3 hp (55.4) @ 2300 rpm
Height to Hinge Pin - Fully Raised (mm): 128" (3251)

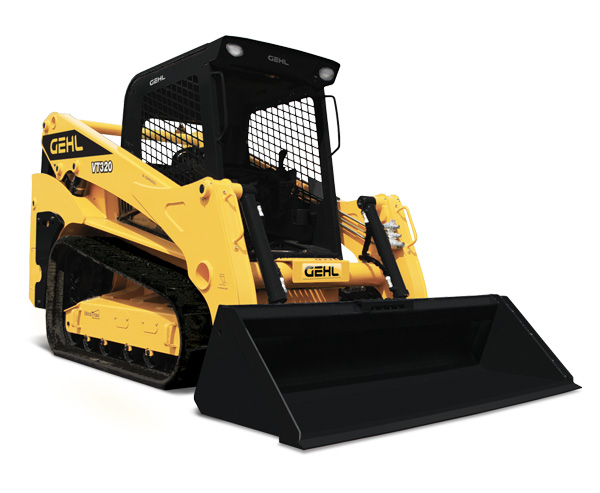

VT320 Track Loader
Rated Operating Capacity at 35% Tipping Load (kg): 3,200 lbs. (1452)
Net Power (kW): 114 hp (85)
Lift Height (mm): 130" (3302)
Gehl RT Series Specifications
| RT105 | RT165 | RT185 | RT215 | RT255 | VT320 | ||
|---|---|---|---|---|---|---|---|
| DIMENSIONS | Overall Operating Height – Fully Raised (mm) | 143.7" (3650) | 157.8" (4008) | 168" (4267) | 168" (4267) | 168" (4267) | 169" (4293) |
| Height to Hinge Pin – Fully Raised (mm) | 109" (2769) | 119.6" (3038) | 128" (3251) | 128" (3251) | 128" (3251) | 130" (3302) | |
| Reach – Fully Raised (mm) | 26.5" (673.1) | 25.3" (641) | 34.5" (876) | 34.5" (876) | 34.5" (876) | 40.4" (1026) | |
| Dump Angle – Fully Raised | 38° | 39° | 40.2° | 39° | 41° | 41° | |
| Dump Height – Fully Raised (mm) | 84" (2134) | 91.7" (2329) | 98" (2489) | 98" (2489) | 98" (2489) | 99.6" (2530) | |
| Maximum Rollback Angle – Fully Raised | 102° | 98° | 102.5° | 102.5° | 102.5° | 90° | |
| Overall Height at ROPS (mm) | 71.5" (1816) | 77.5" (1969) | 83" (2103) | 83.1" (2111) | 83.1" (2111) | 83.1" (2111) | |
| Overall Length w/ Bucket – Std. c-wt. (mm) | 117.5" (2985) | 126.2" (3205) | 148" (3754) | 148.4" (3769) | 157.8" (4008) | 159.8" (4059) | |
| Overall Length w/o Bucket – Std. c-wt. (mm) | 88.9" (2258) | 94.2" (2393) | 114.8" (2921) | 116.5" (2959) | 126.8" (3221) | 127.7" (3243) | |
| Specified Height (mm) | 57.7" (1466) | 64.5" (1638) | 67.5" (1715) | 67.7" (1720) | 67.7" (1720) | 76.3" (1938) | |
| Reach at Specified Height (mm) | 39" (991) | 22" (559) | 31.1" (790) | 31.3" (795) | 31.3" (795) | 29.6" (751) | |
| Dump Angle at Specified Height | 72° | 73° | 66.8° | 75° | 66.8° | 68° | |
| Maximum Rollback Angle at Ground | 32° | 28° | 30° | 30° | 30° | 31° | |
| Carry Position (mm) | 5" (127) | 7.8" (198) | 8.2" (208) | 8.2" (208) | 8.2" (208) | 7.8" (199) | |
| Maximum Rollback Angle at Carry Position | 32° | 28° | 31.6° | 31.6° | 31.6° | 31° | |
| Digging Position – Below Ground (mm) | 0" (0) | 2.1" (53) | +0.9" (23) | +0.6" (16) | +0.5" (13) | +0.74 (19) | |
| Angle of Departure with Std. c-wt. | 35° | 28° | 30.4° | 29.2° | 25° | 24° | |
| Ground Clearance (mm) | 7.5" (191) | 7.3" (185) | 12.5" (318) | 12.6" (320) | 12.3" (313) | 12.2" (309) | |
| Track Gauge (mm) | 40.9" (1039) | 53.4" (1356) | 51.7" (1313) | 51.7" (1313) | 51.7" (1313) | 51.7" (1313) | |
| Track Shoe Width (mm) | 9.8" (250) | 12.6" (320) | 12.6" (320) | 17.7" (450) | 17.7" (450) | 17.7" (450) | |
| Crawler Base (mm) | 50.5" (1283) | 49.8" (1265) | 54.8" (1392) | 58.4" (1483) | 61.5" (1562) | 61.8" (1570) | |
| Overall Width – Less Bucket (mm) | 50.8" (1290) | 66.0" (1676) | 64.4" (1636) | 69.5" (1765) | 69.5" (1765) | 69.5" (1766) | |
| Bucket Width (mm) | 54" (1372) | 66.0" (1676) | 65.9" (1674) | 73.9" (1877) | 83.9" (2131) | 83.9" (2131) | |
| Clearance Radius – Front With Bucket (mm) | 73" (1854) | 77.9" (1979) | 91.4" (2322) | 94.6" (2403) | 98.4" (2499) | 96.1" (2442) | |
| Clearance Radius – Rear w/ Std. c-wt. (mm) | 50.8" (1290) | 56.7" (1440) | 65.6" (1666) | 64.6" (1641) | 70.7" (1796) | 73.6" (1870) | |
| Maximum Rollback at Specified Height | 72° | 62° | 66.8° | 66.8° | 66.8° | 64.5° | |
| Angle of Approach | 90° | 90° | 90° | 90° | 90° | 90° | |
| Grouser Height (mm) | 1" (25) | 1" (25) | 1" (25) | 1" (25) | 1" (25) | 1" (25.4) | |
| CAPACITY | Operating Capacity at 35% Tipping Load (kg) | 1,050 lbs. (476) | 1,650 lbs. (748) | 1,850 lbs. (839) | 2,150 lbs. (975) | 2,550 lbs. (1157) | 3,200 lbs. (1452) |
| Operating Capacity at 50% Tipping Load (kg) | 1,500 lbs. (680) | 2,357 lbs. (1069) | 2,643 lbs. (1199) | 3,072 lbs. (1393) | 3,643 lbs. (1652) | 4,571 lbs. (2074) | |
| Tipping Load (kg) | 3,000 lbs. (1361) | 4,715 lbs. (2139) | 5,286 lbs. (2398) | 6,144 lbs. (2787) | 7,286 lbs. (3305) | 9,143 lbs. (4148) | |
| Operating Weight (kg) | 4,720 lbs. (2141) | 8,020 lbs. (3638) | 9,160 lbs. (4128) | 9,900 lbs. (4491) | 11,600 lbs. (5260) | 11,610 lbs. (5267) | |
| ENGINE | Make/Model | Yanmar/3TNV88C- KMS Tier IV | Yanmar/4TNV98C- NMS2 Tier IV | Yanmar / 4TNV98C- NMSL Tier IV | Yanmar / TNV98CT- NMSL Tier IV | Deutz / TD 3.6 L4 Tier IV | Deutz / TD 3.6 EPA Final Tier IV |
| Type | 4-Stroke Naturally Aspirated | 4-Stroke Naturally Aspirated | 4-Stroke Naturally Aspirated | 4-Stroke Turbo | 4-Stroke Turbo | 4-Stroke Turbo | |
| Displacement (L) / cylinders | 100.2 cu. in./3 (1.642 L) | 203 cu.in./4 (3.3 L) | 203 cu. in. (3.3) / 4 | 202 cu. in. (3.3) / 4 | 221 cu.in. (3.6) / 4 | 221 cu.in. (3.6) / 4 | |
| Gross Power (kW) @ rpm | 34.7 hp (25.5) @ 2800 | 69.3 hp (51.7) @ 2500 | 69.3 hp (51.7) @ 2500 | 72 hp (53.7) @ 2500 | 74.3 hp (55.4) @ 2300 | 114 hp (85 kW) @ 2300 | |
| Net Power (kW) @ rpm | 31.8 hp (23.7) @ 2800 | 68.4 hp (51.0) @ 2500 | 68.4 hp (51) @ 2500 | 70.7 hp (52.7) @ 2500 | 70.7 hp (52.7) @ 2300 | 108 hp (80.8 kW) @ 2300 | |
| Peak Torque (Nm) @ rpm | 80.7 ft.-lbs. (109.4) @ 1820 | 178 ft.-lbs. (241) @ 1625 | 178 ft-lbs. (241) @1625 | 217 ft.-lbs. (294) @ 1800 | 243 ft.-lbs. (330) @ 1600 | 339 ft.-lbs. (430 Nm) @ 1600 | |
| Oil Pan Capacity (L) | 6.2 qts. (5.87) | 9.5 qts. (9) | 11 qts. (10.4) | 11 qts. (10.4) | 9 qts. (8.5) | 9 qts. (8.5) | |
| Alternator Voltage / Amperage | 12V / 55A | 12V / 100A | 14V / 100A | 14V / 100A | 12V / 120A | 14V/95A | |
| TRACK DRIVES | Drawbar Pull / Tractive Effort (kg) | 4,400 lbs. (1996) | 9,578 lbs. (4,345) | 10,218 lbs. (4635) | 12,133 lbs. (5503) | 12,453 lbs. (5649) | 12,770 lbs. (5792) |
| Track Type / Track Rollers / Roller Type | Rubber / 4 / Steel | Rubber / 3 / Steel | Rubber / 4 / Steel | Rubber / 5 / Steel | Rubber / 5 / Steel | Rubber/Steel | |
| Track Width (mm) | 9.84" (250) | 12.6" (320) | 12.6″ (320) | 17.7″ (450) | 17.7″ (450) | 17.7" (450) | |
| Ground Pressure (bar) | 4.8 psi (.33) | 6.5 / 5.2 psi (.45 /.36) | 6.3 psi (0.43) | 4.8 psi (0.33) | 5.2 psi (0.36) | 5.3 psi (.37) | |
| FORCES | Bucket Breakout – Tilt Cylinder (kg) | 2,975 lbs. (1346) | 4,230 lbs. (1919) | 5,354 lbs. (2429) | 6,631 lbs. (3008) | 8,384 lbs. (3803) | 9,901 lbs. (4492) |
| Bucket Breakout – Lift Cylinder (kg) | 3,042 lbs. (1376) | 5,060 lbs. (2295) | 5,016 lbs. (2275) | 6,481 lbs. (2940) | 7,437 lbs. (3373) | 7,491 lbs. (3398) | |
| Ground Speed – Single Speed (km/hr) | 6.3 mph (10.1) | 6.5 mph (10.5) | 5.9 mph (9.5) | 5.9 mph (9.5) | 5.3 mph (8.5) | 5.3 mph (8.6) | |
| Ground Speed – Two Speed (km/hr) | N/A | 10.0 mph (16.1) | 8.8 mph (14.2) | 8.8 mph (14.2) | 7.5 mph (12.1) | 7.8 mph (12.6) | |
| VOLUME | Fuel Tank (L) | 9.5 gal. (36) | 16.5 gal. (62.5) | 24 gal. (91) | 24 gal. (91) | 32 gal. (121.1) | 32.5 gal. (123) |
| Hydraulic Reservoir Tank (L) | 8 gal. (30) | 10.3 gal. (39) | 11.0 gal. (41.6) | 13.8 gal. (52.2) | 13.8 gal. (52.2) | 16.5 gal. (62.5) | |
| Coolant Capacity (L) | 1.75 gal. (6.62) | 3.4 gal. (12.9) | 3.5 gal. (13.3) | 3.8 gal. (14.4) | 6.1 gal. (23.1) | 5.1 gal. (19.3) | |
| HYDRAULICS | Auxiliary Hydraulic Flow – Rated Speed (L/min) | 14.5 gpm (55) | 18.7 gpm (71) | 18.5 gpm (70.0) | 21.8 gpm (82.5) | 29.07 gpm (110) | 27 gpm (102.2) |
| High-Flow Hydraulic Flow – Rated Speed (L/min) | N/A | 30.1 gpm (114) | 34.0 gpm (128.8) | 35.9 gpm (135.8) | 37.3 gpm (142.7) | 37.4 gpm (141.6) | |
| Transmission Pump Type | Manual Tandem | Axial Piston | Axial Piston | Axial Piston | Axial Piston | Axial Piston | |
| Motor Type | Radial Piston | Radial Piston | |||||
| Battery Volts | 12V | 12V | 12V | 12V | 12V | 12V | |
| Cold Cranking Amps at Temperature | 800 CCA @ 0°F (-18°C) | 950 CCA @ 0°F (-18°C) | 850 CCA @ 0°F (-18°C) | 850 CCA @ 0°F (-18°C) | 950 CCA @ 0°F (-18°C) | 950 CCA @ 0°F (-18°C) |
×
